Externally Switchable Lid
The present application is based on and claims the benefit of U.S. Provisional Patent Application Ser. No. 62/782,210, filed on Sep. 7, 2018 and U.S. Provisional Patent Application Ser. No. 62/821,815, filed on Mar. 21, 2019, the contents of which are hereby incorporated in their entirety. Detecting the precise location of underground utilities is critical in protecting valuable infrastructure assets and in saving lives. Utility locating systems utilize tracer wire buried alongside a utility line to detect the location of the underground utility lines. The tracer wire carries a signal that can be detected above ground with line locating equipment. A low-voltage electric signal is applied to tracer wire by a utility locate transmitter. In order for the signal to be pulled along the tracer wire, the tracer wire must be properly grounded at all tracer wire dead ends and at other strategic points along the utility lines. Grounding of the tracer wire is generally done with a drive-in magnesium grounding rod with ground rod wire. The tracer wire and ground rod wire are terminated and connected at access points. Access points are stations that provide direct connection point for a utility locate transmitter to hook to tracer wire and a point to connect/disconnect the ground wire. A properly charged and grounded tracer wire system with protective access points are critical to locating from above ground and in protecting underground utilities from damage. To locate underground tracer wire, it is important to be able to isolate different sections of the tracer wire system. To do that, you must be able to turn the grounds on and off. Turning the grounds on and off at different access points along the system will control flow of the electrical current and direct it to the target tracer wire. If the electrical current is not controlled in this manner, electricity will automatically flow to the strongest ground, which may draw the current away from the target line. Controlling the flow of electric current along tracer wire by controlling the grounds is critical in utility locating. Typically, connecting and/or disconnecting the ground wire is done by unscrewing and removing the access point lid and manually connecting/disconnecting the ground wire from the terminal connection between the tracer wire and the ground wire. This manual disconnection and then reconnection is cumbersome and time consuming. Furthermore, dirt and debris can gather in the access point, and water can enter the access point depending on the weather at the moment of access, corroding the wires and requiring costly replacement or resulting in a failure to provide a signal for locating the corresponding utility. An aspect of the present disclosure relates to an externally switchable lid for switching a ground signal on and off. The lid allows for the external switching of the ground signal between and “on” and an “off” position without requiring removal of the lid. The lid comprises at least two terminals or more such as three, four, five or more terminals. Another aspect of the present disclosure relates to an externally switchable lid for securing to a utility tracer wire access point. The lid has a top surface supporting a ground switch and direct connection point(s) for a transmitter, and a bottom surface supporting terminal connection points for tracer wire and ground wire. A jumper joins the tracer wire terminal(s) to the ground terminal(s). The tracer wire terminal(s) connects to the direct connection point on the top of the lid, and the ground wire terminal connects to the ground switch at the top of the lid. The lid attaches to a housing that extends underground such that the switch and direct connection point(s) is accessible from above ground and wherein the tracer wire and the ground wire extend through connections to the bottom surface of the lid and down through the housing and underground. The lid may further comprise a locking mechanism for securing the lid to the housing. The ground switch engages and disengages connection to the jumper which engages or disengages the electrical connection between the ground wire and the tracer wire. The ground switch movable between two positions—a first position and a second position. In the first position, the ground terminal touches the jumper, and the connection between the tracer wire and the ground wire is engaged. In the second position, the ground terminal does not touch the jumper (space between), and the connection between the tracer wire and the ground wire is disengaged. Another aspect of the present disclosure relates to a method of conductively engaging and disengaging a buried ground rod in order to locate a utility line using a buried tracer wire. The method includes providing a lid having a top surface supporting a ground switch and direct connection point(s) and a bottom surface supporting a ground terminal for connecting a ground wire secured to the ground rod to the ground switch and tracer wire terminal(s) for connecting tracer wire to the direct connection point on the top of the lid. The lid is secured to an access point, wherein the access point is at least partially buried underground and wherein the access point supports terminal ends of the ground wire and tracer wire therein for connection to the ground and tracer wire terminals on the bottom surface of the lid. The ground switch is a switch movable between a first position to effectuate movement of a conductive surface to conductively connect the ground rod with the tracer wire and a second position to conductively disengage the ground rod from the tracer wire from an above ground surface position. Locking the lid in connection with the access point may be done by rotating a bolt with a threaded end extending from the bottom surface of the lid into connection with a collar of the access point. Locating the utility line can be done by detecting a signal from the tracer wire when the ground rod is conductively disengaged from the tracer wire at the access point at which the transmitter is connected. Moving the ground switch effectuates conductively engaging or disengaging a conductive surface of the ground terminal with a ground switch jumper fixedly secured to the tracer wire terminal such that the switch moves the conductive surface to conductively engage or disengage the ground rod. Yet another aspect of the present disclosure relates to an externally switchable lid for securing to a utility tracer wire access point. The lid has a top surface supporting a ground switch and a direct connection point, and a bottom surface supporting a ground terminal for connecting a ground wire to a ground switch and tracer wire terminal(s) for connecting tracer wire to a direct connection point on the top of the lid. The tracer wire terminal(s) also has a first end of a ground switch jumper fixedly secured thereto. The lid also has a locking mechanism for securing the connection of the lid to an access housing. The access housing houses a length of the tracer wire and the ground wire extending from their respective connections with the bottom surface of the lid with both wires extending though the access housing to their respective underground positions. The locking mechanism may be a pentagon head bolt with a threaded end extending from the bottom surface of the lid for connection with a collar of the access housing for securing the lid to the access housing. The ground switch is movable to conductively engage or disengage a second opposing end of the ground switch jumper with a conductive surface of the ground terminal to conductively engage or disengage a ground rod. The lid described herein may be comprised of high-strength, impact-resistant non conductive resin having electrically insulative characteristics. Yet another aspect of the present disclosure relates to a method of making an externally switchable lid by injection molding a high-strength, impact-resistant electrical insulating resin to form a lid having a top surface and a bottom surface and electrically conductive terminals supported therein, wherein the terminals extend outwardly from a bottom surface of the lid. A top surface of the lid supports a switch operably connected to a terminal and a connection point operably connected to additional terminals. The method includes securing a conductive element to one terminal on the bottom surface of the lid wherein at least one of the two conductive terminals is movable via movement of the switch so as to provide selective conductive contact between the terminal to which the conductive terminal is not secured to. A locking mechanism may also be provided in the injection molded lid, the locking mechanism extending from a top surface through the lid to the bottom surface. An externally switchable lid for switching a ground signal “on” and/or “off” is described herein. The lid is externally switchable in that the lid need not be removed from a housing to switch the ground signal on and/or off. The lid may include two terminals for connection to a ground and a tracer wire for example. Further, the lid described herein can include additional terminals such that the lid supports three, four, or more terminals up to twenty terminals or more. The externally switchable lid may be used in various applications including but not limited to cathodic protection, irrigation locating, pet fence locating, and utility locating. The embodiments described herein are directed to the externally switchable lid for use in locating a buried utility, however, the externally switchable lid can be utilized in any application wherein a ground signal is switched between on and off positions. In one embodiment, a buried utility locating system comprises buried tracer or locator wire coextending along a length of buried utility cable or piping, for example. A second tracer or locator wire is then connected to a “ground” rod, also buried near terminal ends of the buried utility and at tracer wire access points along the length of the buried utility. The tracer or locator wire can be detected from above ground by detection of an electromagnetic field radiating from the tracer or locator wire, which is referred to as a “signal.” Additionally, the locator system may include a tracer or locator wire that is a copper-clad steel tracer wire and a grounding rod at each access point conductively connected to the buried tracer wire along the utility line. Properly grounding the locator system tracer wire dead ends and at each access point along the utility line aids is crucial in pulling the signal along the tracer wire enabling location. For example, to detect the location of the utility line, a low voltage charge is applied on at a selected access point to a target line extending from that access point. Grounding the tracer wire at each access point will draw the locate signal down the line towards the adjacent access point(s), which is essential to locating. However, if the ground wire is not disconnected from the ground rod at the first access point, the first access point being where the low voltage is applied to the tracer wire, the voltage will travel down the ground wire at that first access point and will not travel along the tracer wire to the next access point. In other words the voltage will take the path of least resistance to the nearest ground rod, and the tracer wire will not be locatable. For the tracer wire to be locatable, the ground rod has to be conductively disconnected from the tracer wire at the first access point (where the low voltage is applied is the tracer wire). The low voltage will then travel to the next adjacent access point(s) where the tracer wire and the ground rod are conductively connected. This disclosure provides a solution for quickly and easily conductively disconnecting the tracer wire from the ground and then easily and quickly connecting the ground and the tracer wire. In one embodiment, the externally switchable lid provides a user direct and quick access to an underground tracer or locator wire buried along with a utility cable or pipe and a corresponding underground ground rod at that access point. The terminals are supported by the lid and secured within a thickness of the lid. The tracer wire and grounding rod are buried underground with the installation of utility cables or pipes to allow the user to trace and determine the location of the cables or pipes at a later time. The externally switchable lid is positioned for access to a top surface of the lid at or above a ground surface. The externally switchable lid also allows the user to effectuate a switch above ground to conductively connect and disconnect the ground rod from the tracer wire system (e.g., turning the ground “on” and “off”), thus allowing a signal to travel along the tracer wire for location detection. The lid allows the user to conductively disconnect the ground wire via an above-ground accessible ground switch on the lid and apply low voltage to the tracer wire from above ground, for locating the wire along the utility line. This is done without removing the lid from the housing. That is, prior to voltage being applied to the tracer wire at an access point, the switch can be moved to effectuate the conductive disengagement of the ground wire at that access point only, allowing the voltage to travel down the tracer wire to the next access point. Further, the lid allows the conductive disengagement of the ground wire and application of the low voltage without removal of the lid or exposing the buried wire connections. In the embodiment illustrated in The locking mechanism 16 secures the lid 10 to the base 11 to prevent tampering. The locking mechanism 16 may be a notched bolt end to prevent loss of the locking mechanism 16. For example, the locking mechanism 16 secures the lid 10 to a collar of the base 11 in a closed position via a threaded length 17 extending from the bottom surface 22 of the lid 10. In the embodiment illustrated, the locking mechanism 16 comprises a pentagon head bolt 16. The locking mechanism may be an anodized aluminum bolt having about 0.830″-0.875″ flat to vertex dimensions, which secures the lid 10 to a pre-existing base 11 as the locking mechanism 16 can only be removed with a proper pentagon wrench. First terminal ends of the tracer wire 26 and ground wire 24 are connected to corresponding terminals on the bottom surface 22 of the lid 10. The ground switch 12 is connected to a ground switch terminal 12 Referring more specifically to Thus, protruding from the bottom surface 22 of the lid 10 are the connection ends 12 The bottom surface 22 of the lid 10 also supports a ground switch jumper 15 which completes an electric circuit between the ground wire 24 and the direct connector terminal 14 The lid 10 may be comprised of a high-strength, impact-resistant nonconductive resin such that the lid 10 resists chipping and oxidization. The nonconductive characteristic of the lid provides electrical insulation between the terminals 12 and 14. For example, the lid 10 may be formed by injection molding a non-corrosive resin. The lid 10 illustrated in the figures has a flexural strength of about 28,300 psi, and is conditioned per standard ISO 178. The lid 10 has an impact rating of 43 (−22° F.)/44 (73° F.) ft lb/in2 per an unnotched Charpy impact properties determination according to ISO standard 179/1 eU. The lid 10 also has a melting temperature of about 451° F., determined per ISO 11357-3. The ground switch 12, its connector end 12 Second terminal ends of the ground wire 24 and the tracer wire 26 extend from operable connection with the respective ground switch connection end 12 As illustrated in The illustrated embodiment includes two terminals for purposes of illustration of the externally switchable lid, however the lid can be configured for and having dimensions to support additional terminals. For example, the externally switchable lid may have any number of terminals, including two, three, four or more and up to twenty or more terminals. The lid 10 thus remains secured to the base 11 when a user connects or disconnects the locating system from the grounding 28. The lid 10 also remains secured to the base 11 when applying the low voltage to the tracer wire 24. When installing the lid 10, the tracer wire 26 is connected with a set screw to the direct connector 14 and terminal 14 The lid 10 can be provided in various colors, such that the lid 10 is color-coded to meet American Public Works (APWA) standards to provide instant identification of the traced utility. For example, the lid can be provided in the appropriate color red to identify electric utilities, yellow for gas, orange for communication, blue for potable water, green for sewer and purple for reclaimed water. Although the present disclosure has been described with reference to preferred embodiments, workers skilled in the art will recognize that changes may be made in form and detail without departing from the spirit and scope of the disclosure. An externally switchable lid for securing to a utility tracer wire access housing and for selectively conductively engaging and disengaging a buried ground rod in order to locate a utility line via the tracer wire. The lid has a first surface supporting a switch and a second surface supporting a first terminal for connecting a tracer wire directly to the lid and the first terminal having a first end of a switch jumper fixedly secured thereto and a second terminal for connecting a ground wire to the ground switch. A locking mechanism is provided for securing the lid to the access housing while the lid is accessible above-ground. The lid connects to the access housing which has a length of the tracer wire and the ground wire extending from connection with the lid and extending underground. 1. An externally switchable lid, the lid comprising:

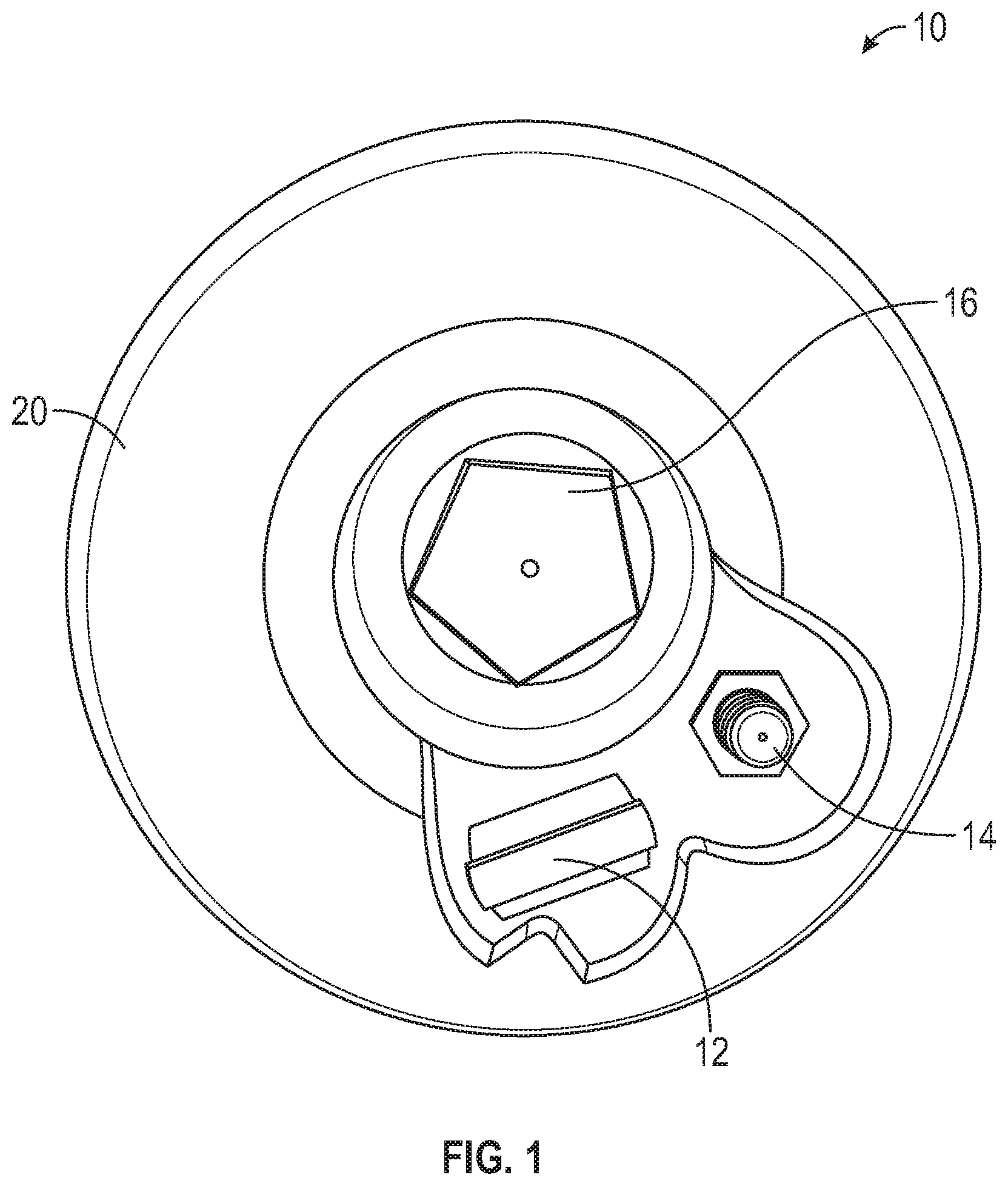

a top surface supporting a ground switch; and a bottom surface supporting one or more terminal connection points, wherein the bottom surface supports a first terminal for connecting to a ground wire and one or more additional terminals for connecting to a tracer wire, wherein the lid is connectable to a housing such that the ground switch is accessible without removing the lid from the housing, and wherein the tracer wire and the ground wire extend from connection with the bottom surface of the lid through the housing. 2. The lid of 3. The lid of 4. The lid of 5. The lid of 6. The lid of 7. The lid of 8. The lid of 9. The lid of 10. A method of tracing a buried utility line, the method comprising:
providing a lid having a top surface supporting a physical switch and a coupling for direct access to at least one additional terminal, and a bottom surface supporting a first terminal for connecting to a ground rod the at least one additional terminal for connecting to a tracer wire wherein the switch is operably connected to the first terminal to effectuate movement of the first terminal; coupling a first end of a ground wire to the first terminal and a second end of the ground wire to the ground rod; coupling a first end of the tracer wire to the at least one additional terminal and a second end of the tracer wire extending underground along the buried utility line; securing the lid to an access housing and wherein the access housing retains the first ends of the ground wire and tracer wire connected to the first terminal; moving the switch from a first position for effectuating conductive engagement of the ground wire with the at least one additional terminal to a second position for effectuating conductive disengagement of the ground wire from the at least one additional terminal; and applying a low voltage signal to the coupling for direct access to the second terminal and thus applying voltage only to the tracer wire. 11. The method of 12. The method of 13. An externally switchable lid for securing to a utility tracer wire access point, the lid comprising:
a top surface supporting a switch and a connector; a bottom surface supporting a first terminal for connecting a ground wire to the switch and supporting at least one additional terminal conductively connected to the connector and the at least one additional terminal for connecting a tracer wire directly to the connector, wherein the at least one additional terminal has a first end of a switch jumper fixedly secured thereto; and a locking mechanism, wherein the lid is connectable to a housing, the housing having a length of the tracer wire and the ground wire extending from connection with the bottom surface of the lid extending there through and underground. 14. The lid of 15. The lid of 16. The lid of 17. The lid of CROSS-REFERENCE TO RELATED APPLICATIONS
BACKGROUND
SUMMARY
BRIEF DESCRIPTION OF THE DRAWINGS
DETAILED DESCRIPTION
