ENDOCARDIAL LEAD SYSTEM

28-10-1999 дата публикации
Номер:
WO1999053993A1
Принадлежит: Cardiac Pacemakers, Inc.
Контакты:
Номер заявки: US9908344
Дата заявки: 16-04-1999

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

[12]

[13]

[14]

[15]

[16]

[17]

[18]

[19]

[20]

[21]

[22]

[23]

[24]

[25]

[26]

[27]



[28]

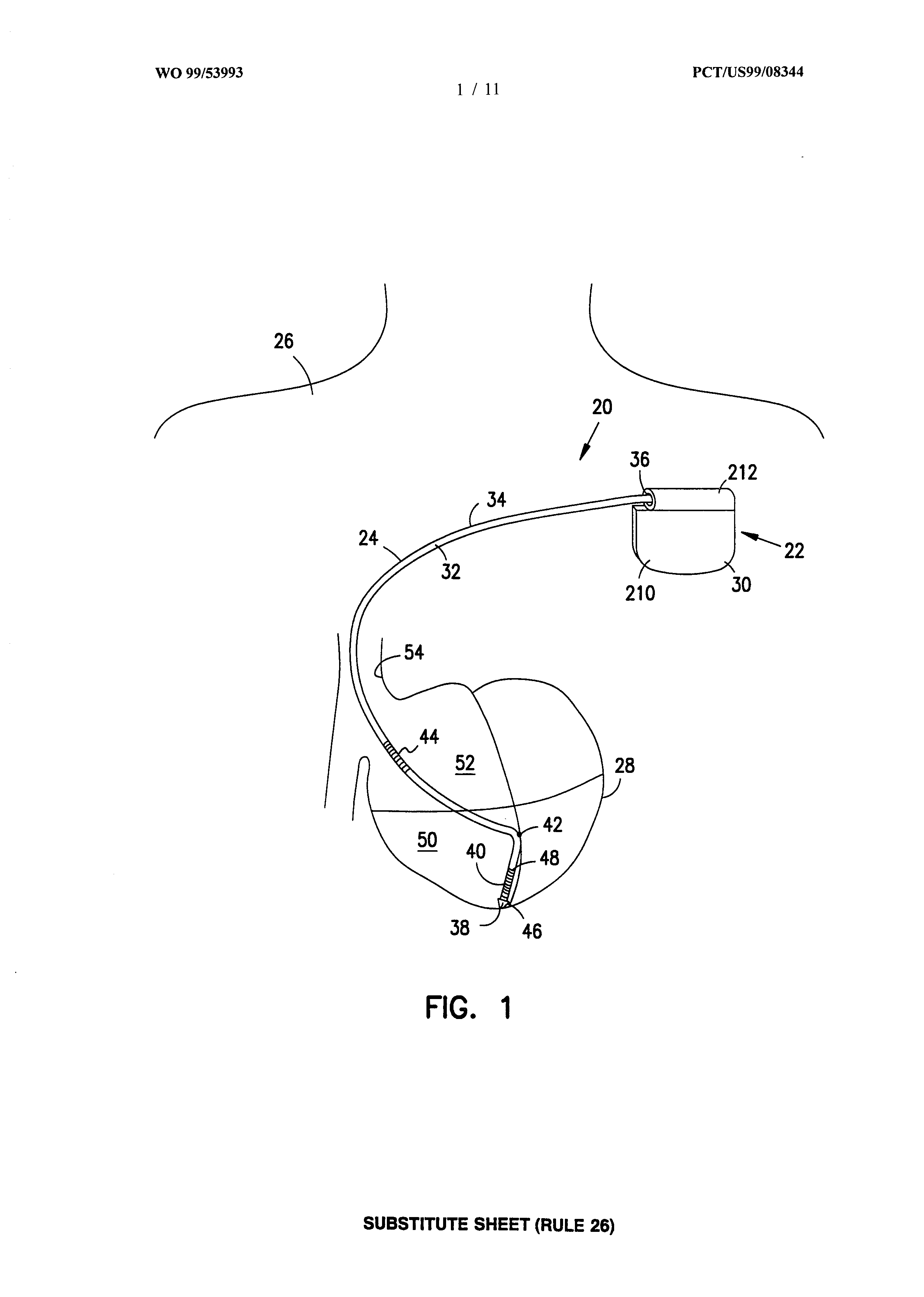

An endocardial lead (20) comprising an elongate body having a first defibrillation coil electrode (40), a second defibrillation coil electrode (44) and a first pacing/sensing electrode (42). The first defibrillation coil electrode has a first end at or near the distal end of the elongate body and a second end spaced longitudinally from the distal end. The first pacing/sensing electrode (42) is spaced longitudinally along the peripheral surface from the second end of the first defibrillation coil electrode and is disposed at a curved portion of the lead body. The second defibrillation coil electrode is spaced longitudinally along the peripheral surface from the first pacing/sensing electrode to afford positioning the first defibrillation coil longitudinally adjacent an apical location of the right ventricle (50) of a heart with the first pacing/sensing electrode within the right ventricle and the second defibrillation coil (44) within the right atrial chamber (52) or a major vein (54) leading to the right atrial chamber.
